CONVERSION & COVER PLATES
QUICK AND EASY LIGHTING UPGRADES WITH COVERSION PLATES

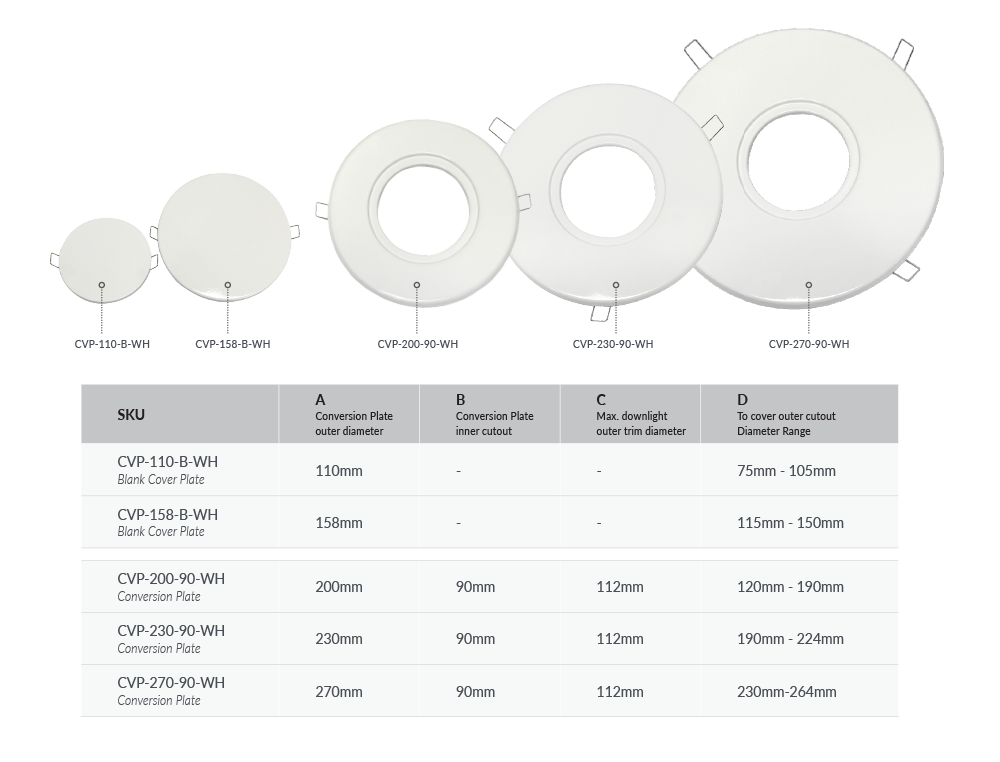

Cover Plates: CVP-110-B-WH | CVP-158-B-WH
Conversion Plates: CVP-200-90-WH | CVP-230-90-WH | CVP-270-90-WH
Upgrade, makeover or retrofit existing lighting with ease, using our range of VIBE coverplates. Designed to facilitate quick and easy lighting upgrades to enhance energy efficiency and overall lighting performance, these plates are the perfect solution for almost any setting.
A Conversion plate diameter
B Cut out size of the NEW downlight should not exceed this diameter
C Trim diameter of your NEW downlight should be greater than the rebate of C but not exceed the diameter of the measurement of B.
D Covers hole size ranging from the 1st measurement to the 2nd.
* CVP-110-B-WH and CVP-158-B-WH are a blank plate used to cover holes where downlight have been removed. Custom cover plates available on request. Lead times apply.
* Actual product should be used to confirm all cut hole sizes prior to installation.
* VIBE Lighting reserves the right to modify the product information above. Please contact us to confirm latest specifications.
